Precision Bearing Solutions · Si₃N₄
Explore silicon nitride ball bearings, silicon nitride roller bearings, hybrid silicon nitride bearings and full ceramic silicon nitride bearings. This product guide helps engineers and industrial buyers compare bearing structures, understand common applications and identify the product configuration that matches their operating requirements.
The right bearing depends on load direction, rotational speed, operating environment, lubrication, shaft and housing design, and whether the application requires ceramic rolling elements only or a fully ceramic bearing assembly. Start by choosing the bearing family below, then review the individual product types.
SERIES 01
Seven product types for radial, axial, combined-load, compact and high-speed bearing applications.
SERIES 02
Six product types covering cylindrical, tapered, spherical, needle, ceramic and hybrid roller configurations.
SERIES 03
Four hybrid bearing types using silicon nitride rolling elements with compatible metal bearing rings.
SERIES 04
Three full-ceramic bearing types for applications that may require ceramic rings and rolling elements.
SERIES 01 / 4 SERIES
Silicon nitride ball bearings use ceramic balls to support rolling motion between bearing raceways. Depending on the design, they can be considered for precision machinery, electric motors, machine-tool spindles and other applications where rolling-element mass, wear, electrical properties or operating speed matter. Confirm whether the requested configuration is hybrid or full ceramic before ordering.
BALL BEARING / 01

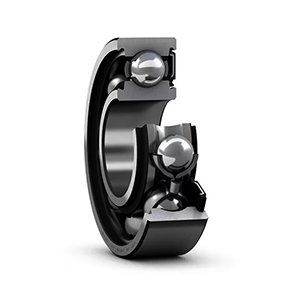

Deep groove ball bearings are commonly used for radial loads and can accommodate limited axial loads in suitable configurations. Silicon nitride balls may be specified for hybrid designs intended for precision rotating equipment.

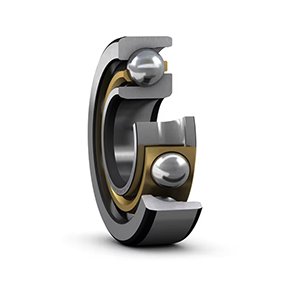

BALL BEARING / 02
Angular contact ball bearings are designed to support combined radial and axial loads according to their contact angle and arrangement. They are used in selected precision spindles, pumps and rotating machinery.

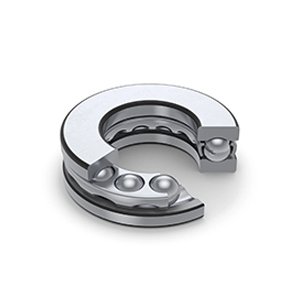

BALL BEARING / 03
Thrust ball bearings are intended primarily for axial loads. Select the correct single-direction or double-direction arrangement according to the shaft design, axial load direction and operating conditions.
BALL BEARING / 04

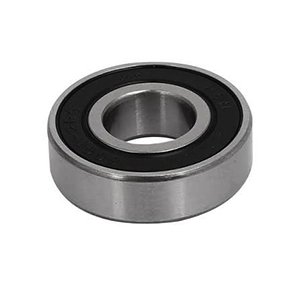

Radial ball bearings support loads acting mainly perpendicular to the shaft. The appropriate internal design, clearance, cage and material combination depends on load, speed, alignment and lubrication requirements.

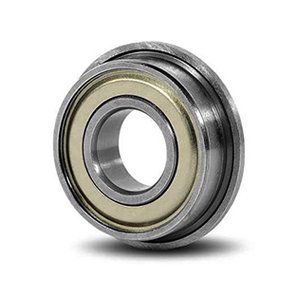

BALL BEARING / 05
Flanged ball bearings feature a flange on the outer ring or specified bearing component to help locate the bearing axially in a housing. Check flange dimensions, mounting method and load conditions when selecting a design.

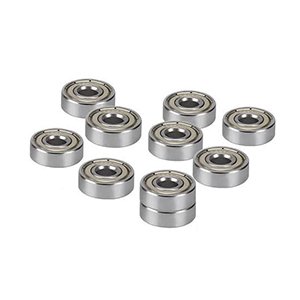

BALL BEARING / 06
Miniature ball bearings are used in compact instruments, small motors, precision mechanisms and space-constrained assemblies. Bore size, outer diameter, width, cage, seals and accuracy requirements should be confirmed.

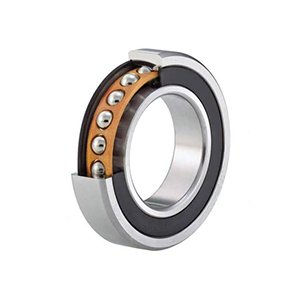

BALL BEARING / 07
High-speed ball bearing configurations may use silicon nitride balls to reduce rolling-element mass and centrifugal loading. Maximum speed depends on bearing geometry, cage, preload, lubrication, fit and heat dissipation.
SERIES 02 / 4 SERIES
Roller bearings use cylindrical, tapered, spherical or needle-shaped rolling elements according to their design. Silicon nitride roller elements may be considered for specialized bearing systems where mass, wear, speed or environmental requirements are important. Load capacity and suitability must be verified for the complete bearing configuration.
ROLLER BEARING / 01

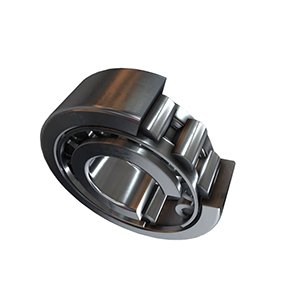

Cylindrical roller bearings are commonly selected for substantial radial loads. Internal clearance, flange arrangement, axial displacement and roller material should match the application and operating conditions.
ROLLER BEARING / 02

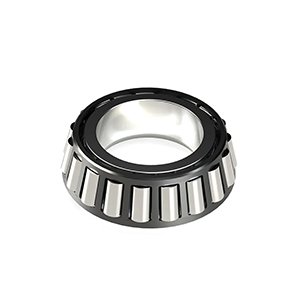

Tapered roller bearings are designed to support combined radial and axial loads. Contact angle, mounting arrangement, adjustment or preload and lubrication all influence bearing performance.
ROLLER BEARING / 03

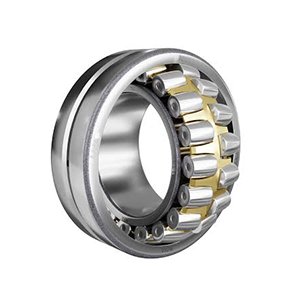

Spherical roller bearings are designed to accommodate radial loads and, in suitable designs, axial loads and a degree of misalignment. Confirm the intended bearing construction before specifying ceramic rolling elements.
ROLLER BEARING / 04

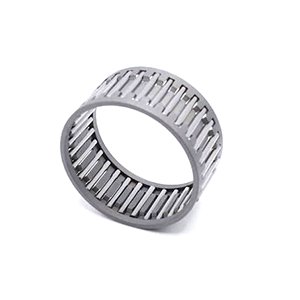

Needle roller bearings use slender rollers and can provide a compact radial bearing arrangement. Available space, shaft hardness, raceway design, lubrication and alignment must be checked carefully.
ROLLER BEARING / 05

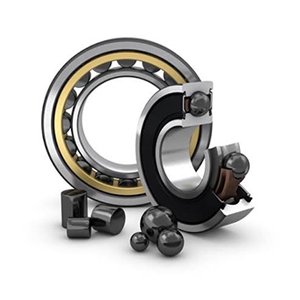

Ceramic roller bearings or ceramic rolling-element configurations are specialized products. Confirm whether the rollers, raceways or both are ceramic, since the construction determines the bearing’s mechanical and operating characteristics.

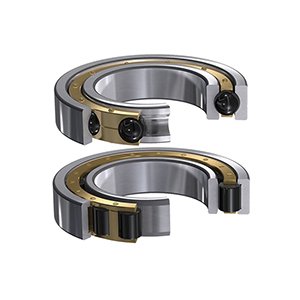

ROLLER BEARING / 06
Hybrid roller bearings combine ceramic rolling elements with compatible metal bearing rings. These designs may be considered for specialized rotating machinery where speed, friction, wear and operating conditions influence material selection.
SERIES 03 / 4 SERIES
Hybrid silicon nitride bearings typically use silicon nitride ceramic balls or rollers with metal inner and outer rings. The lower density of ceramic rolling elements can reduce centrifugal loading in appropriate high-speed designs. Actual speed, load capacity and service life depend on the complete bearing, cage, lubrication, fits, preload and operating environment.

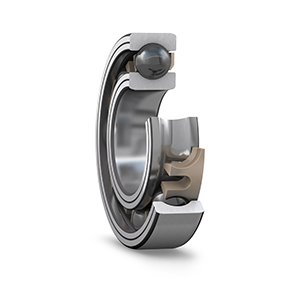

HYBRID BEARING / 01
Hybrid deep groove bearings combine ceramic balls with metal rings in a versatile radial bearing design. They may be suitable for motors, precision equipment and other applications requiring a carefully selected speed and load combination.

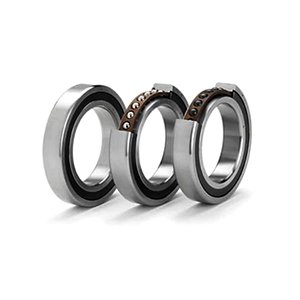

HYBRID BEARING / 02
Hybrid angular contact bearings are designed for combined radial and axial loading. They are often evaluated for precision spindles and rotating systems where speed, stiffness, preload and running accuracy are important.

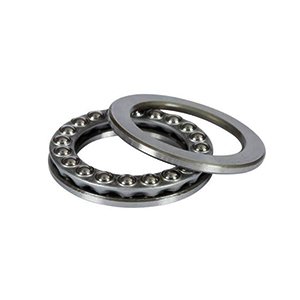

HYBRID BEARING / 03
Hybrid thrust bearings are designed primarily for axial load support and use a specified combination of ceramic rolling elements and metal bearing components. Load direction, speed, lubrication and axial alignment must be confirmed.

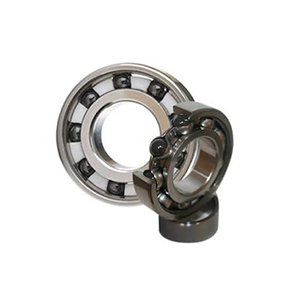

HYBRID BEARING / 04
Hybrid ball bearings use silicon nitride balls with metal rings and may be available in multiple bearing arrangements. Specify the bearing type, dimensions, precision class, cage, seals or shields and operating conditions.
SERIES 04 / 4 SERIES
Full ceramic silicon nitride bearings use silicon nitride ceramic for both the rolling elements and bearing rings, subject to the specified product construction. These bearings may be considered for selected environments requiring electrical insulation, corrosion resistance or operation beyond the capabilities of conventional bearing materials. Installation clearances, load limits, impact risks, lubrication and temperature range must be evaluated carefully.
FULL CERAMIC / 01

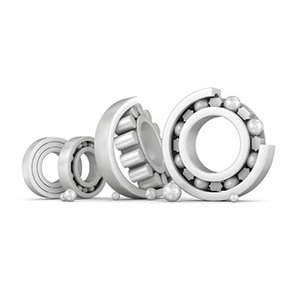

Full ceramic ball bearings use ceramic rings and ceramic balls. They may be considered for selected corrosive, electrically insulating or specialized industrial applications. Confirm the actual material composition, cage design, operating loads and lubrication requirements.

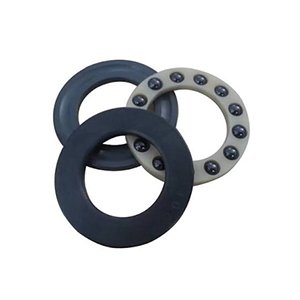

FULL CERAMIC / 02
Full ceramic thrust bearings use ceramic rolling elements and ceramic washers or raceways in the specified construction. They are designed mainly for axial loads, so load direction, speed, alignment and mounting support must be matched to the application.

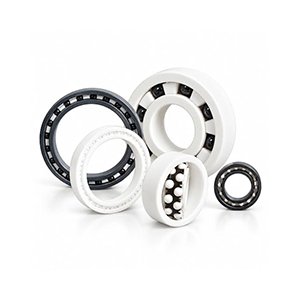

FULL CERAMIC / 03
Full ceramic high-speed bearing designs require careful engineering of internal geometry, cage or retainer arrangement, clearance, lubrication and thermal expansion. Do not assume that a full ceramic bearing has the same speed rating as a similarly sized hybrid bearing.
Use this overview as a starting point for product selection. The exact construction and performance limits must be confirmed for the selected bearing model.
| Bearing Construction | Typical Structure | Selection Considerations |
|---|---|---|
| Hybrid Silicon Nitride | Silicon nitride rolling elements with metal rings. | Speed, cage design, lubrication, electrical requirements, load and compatibility with the shaft and housing. |
| Full Ceramic Silicon Nitride | Silicon nitride ceramic rings and rolling elements in the specified construction. | Temperature, chemical exposure, fit, clearance, load limits, lubrication and brittle-material handling. |
| Ceramic Roller Configuration | Ceramic rollers in a compatible roller-bearing design. | Radial and axial load, roller profile, raceway material, alignment and lubrication. |
To help identify a suitable silicon nitride bearing, prepare as many of the following details as possible:
Hybrid bearings typically use silicon nitride ceramic rolling elements with metal bearing rings. Full ceramic bearings use ceramic rings and ceramic rolling elements in the specified construction. The appropriate option depends on load, speed, environment, installation and performance requirements.
Selected silicon nitride bearing designs are used in high-speed equipment. Actual permissible speed depends on bearing geometry, rolling-element size, cage, preload, lubrication, fit and thermal conditions. Check the rating of the complete bearing assembly.
Lubrication requirements depend on the bearing design, load, speed, temperature and operating environment. Ceramic material alone does not guarantee that a bearing can operate without lubrication. Confirm the manufacturer’s recommendations for the intended conditions.
Custom or application-specific configurations may be evaluated according to the manufacturer’s production capabilities. Provide a drawing, existing bearing reference, required dimensions and operating conditions for review.
Include the bearing type, dimensions, quantity, required construction, load, rotational speed, operating environment, lubrication method and quality requirements. A drawing or model reference helps clarify the requested specification.
TECHNICAL INQUIRY
Tell us which bearing type you need, the required dimensions and the conditions in which it will operate. For custom or application-specific projects, include a technical drawing or bearing reference where available.
