Advanced Ceramics
Explore silicon nitride ceramic tubes engineered for temperature measurement, molten metal transfer, heating element protection, and custom industrial equipment. supports application-based material selection and custom component inquiries according to drawings, dimensions, operating conditions, and project requirements.
Silicon nitride tubes are technical ceramic components made from silicon nitride (Si₃N₄). Depending on their material grade and design, they can provide a useful combination of high-temperature strength, thermal shock resistance, wear resistance, and resistance to many molten non-ferrous metals.
These properties make silicon nitride tubes relevant to aluminum foundries, low-pressure die casting systems, industrial temperature measurement, immersion heating equipment, and selected high-temperature process systems. Their suitability depends on the ceramic grade, density, porosity, tube geometry, thermal cycling, atmosphere, and actual contact medium.
This category page organizes silicon nitride tubes into four application-oriented product groups, helping engineers, equipment manufacturers, purchasing teams, and industrial distributors identify the type most relevant to their projects.
Choose a tube category according to its primary function and industrial operating environment.
CATEGORY 01

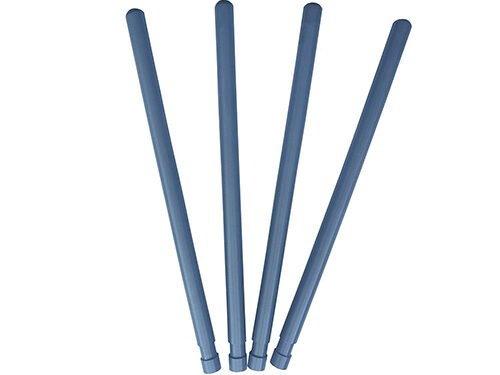

Silicon nitride thermocouple protection tubes form a protective barrier around temperature sensors exposed to high temperatures, molten non-ferrous metals, or demanding furnace conditions. Tube designs may feature a closed sensing end, a specified wall thickness, and a mounting interface suited to the sensor assembly.
The design objective is to balance sensor protection, thermal response, mechanical strength, and chemical compatibility. Actual performance depends on the ceramic grade, tube dimensions, sensor design, and operating environment.
Typical industries: Aluminum casting and foundries; industrial furnaces and heat treatment; glass and advanced ceramics processing.

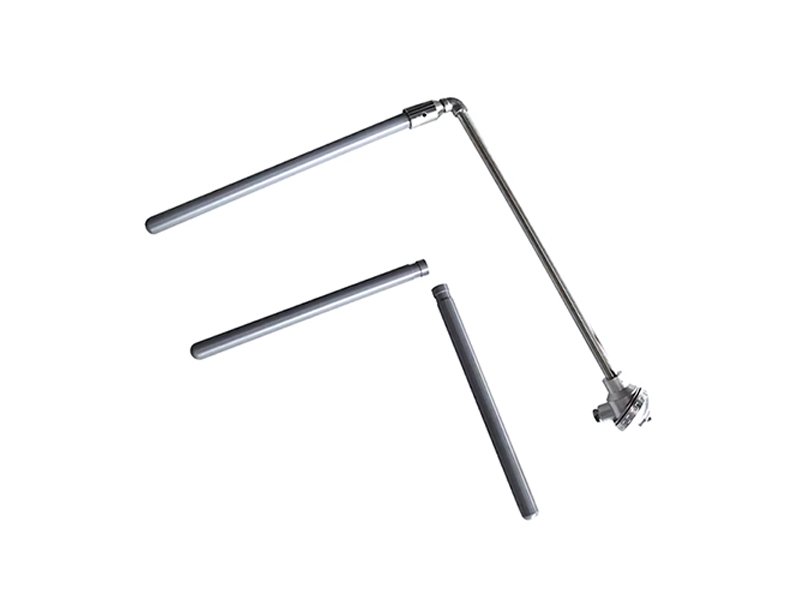

Designed to shield the sensing end of a thermocouple from direct exposure to the process environment. Suitable dimensions and material grades should be selected for the required response time and operating conditions.

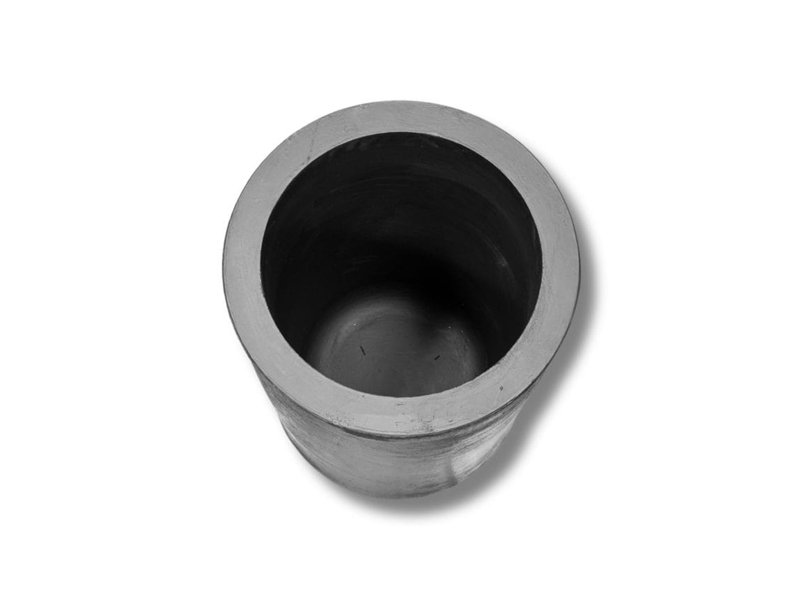

A sensor protection component for temperature monitoring in aluminum melting and casting operations. Confirm the alloy, immersion depth, thermal cycling, tube length, and mounting arrangement before specifying the product.

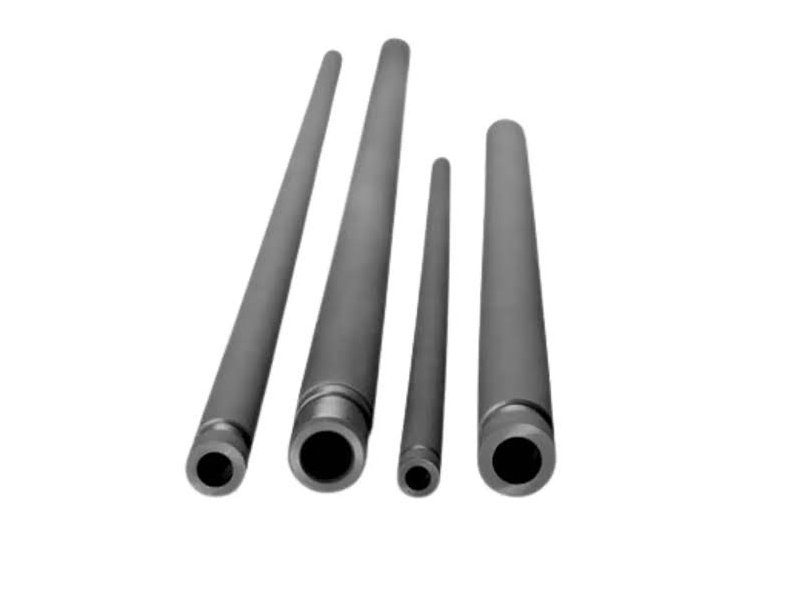

A custom tube option for selected industrial furnace and heat-treatment systems. Supply the required temperature range, atmosphere, sensor dimensions, end configuration, and installation details for technical review.
CATEGORY 02

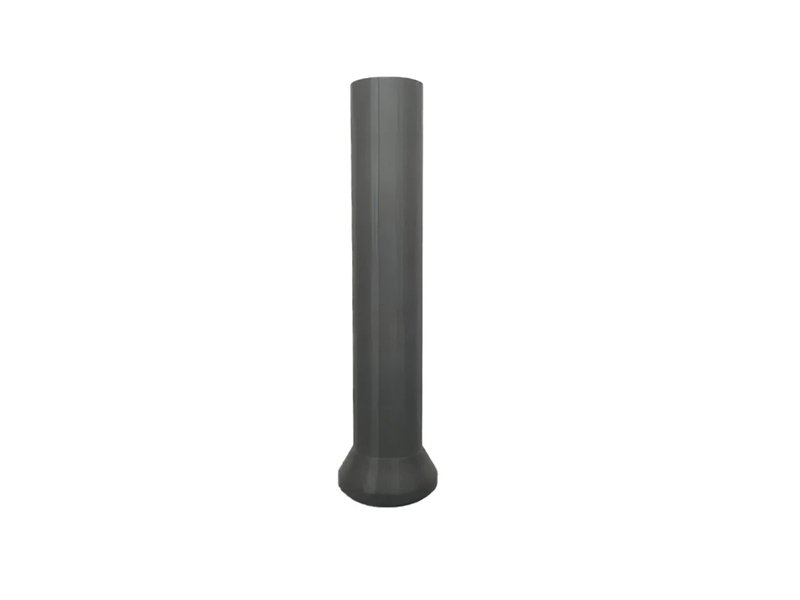

Silicon nitride riser tubes are used in selected molten aluminum transfer systems, particularly low-pressure die casting (LPDC). They provide a channel through which molten metal can be conveyed between a holding furnace and a casting die.
Riser tube selection requires attention to molten metal compatibility, dimensional accuracy, tube length, thermal conditions, mechanical loading, and the geometry of the casting machine. Dense, appropriately processed ceramic grades may be required where resistance to metal infiltration is critical.
Typical industries: Automotive aluminum casting; low-pressure die casting; aluminum foundry and molten metal handling.

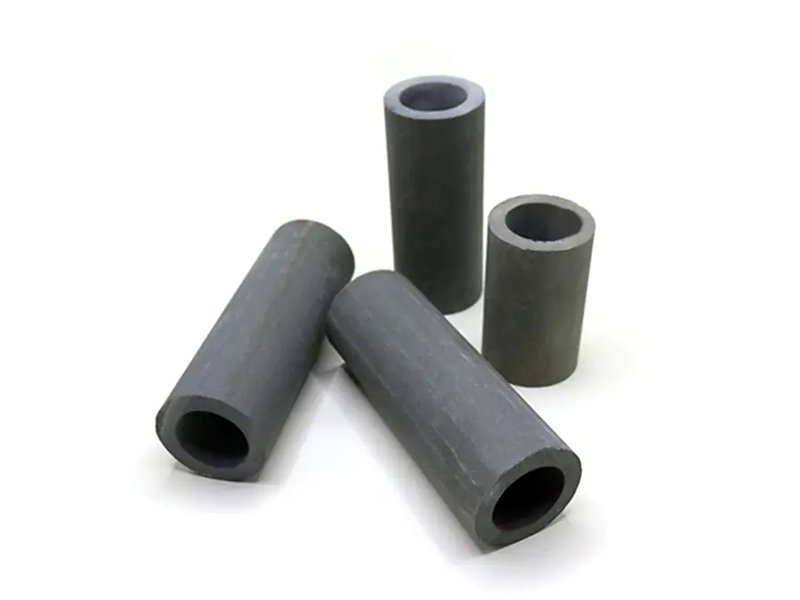

Designed for compatible LPDC equipment used to transfer molten aluminum into a die. Custom dimensions and end configurations should match the furnace and casting machine design.
A ceramic transfer tube for suitable aluminum handling systems. Material density, internal passage geometry, wall thickness, and the actual alloy and operating cycle should be evaluated for each application.

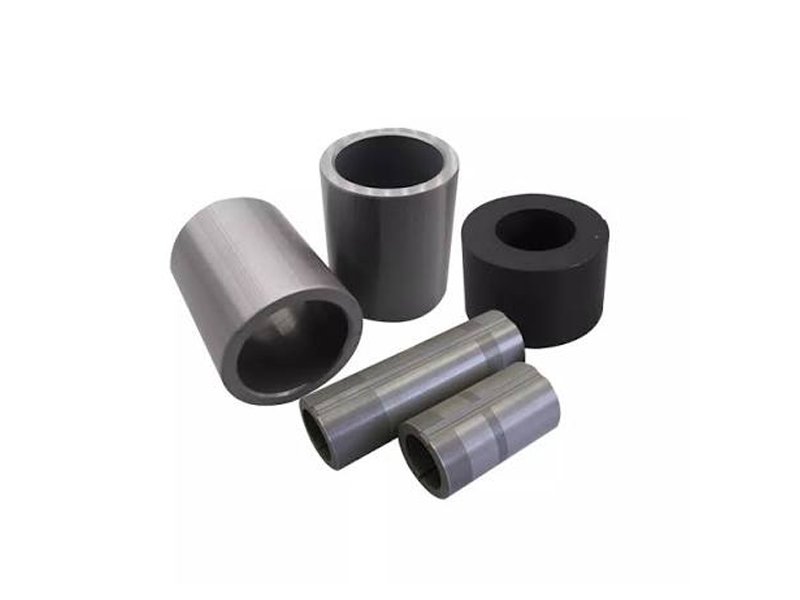

An application-specific riser tube for foundry equipment with non-standard lengths, internal diameters, outer diameters, or end profiles. Drawing review is recommended before quotation and production.
CATEGORY 03

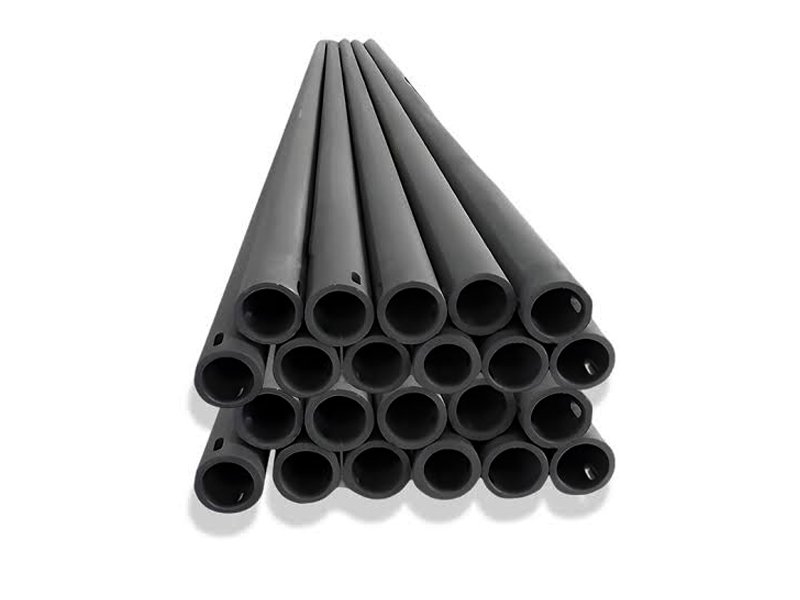

Silicon nitride heater protection tubes are designed for selected immersion heating systems where a ceramic sheath separates an electric heating element from the surrounding process environment. In aluminum melting and holding equipment, the tube must be selected for the metal, heating method, operating temperature, and heat-transfer requirements.
Unlike a sensor protection tube, a heater tube must also support the intended transfer of heat from the element to the process medium. Wall thickness, tube diameter, element clearance, ceramic grade, and installation details therefore require careful coordination with the heating equipment.
Typical industries: Aluminum melting and holding; non-ferrous metal processing; industrial immersion heating equipment.

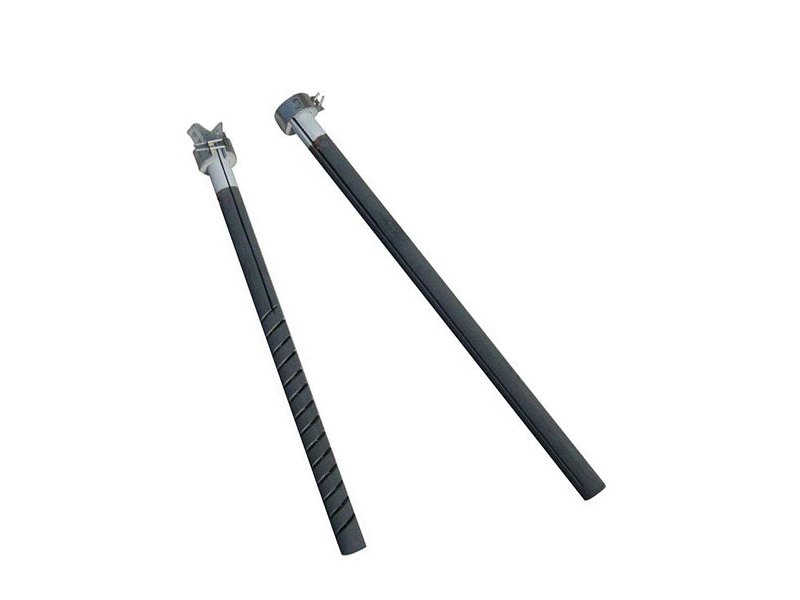

A ceramic sheath for compatible immersion heater assemblies. Specify the heating element dimensions, operating medium, heat output, installation method, and required service conditions.

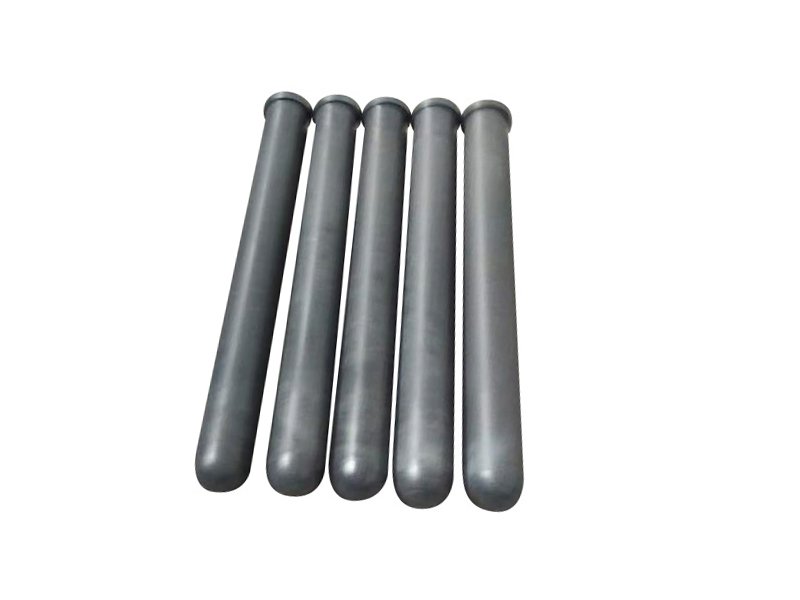

Intended for compatible heating assemblies in aluminum melting or holding furnaces. Confirm alloy compatibility, thermal output, tube geometry, and furnace operating conditions before selecting a grade.

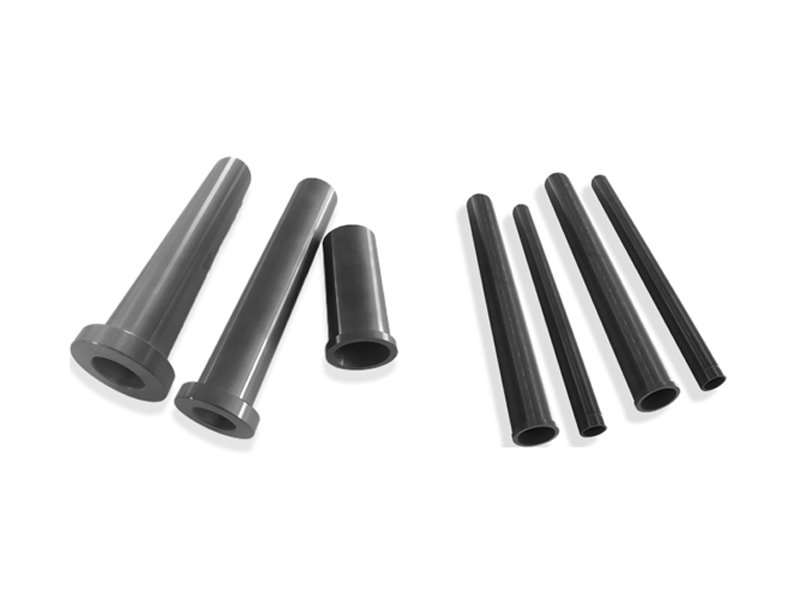

A made-to-specification ceramic tube for compatible industrial heating equipment. Custom length, wall thickness, bore, mounting features, and element clearance can be reviewed against a technical drawing.
CATEGORY 04

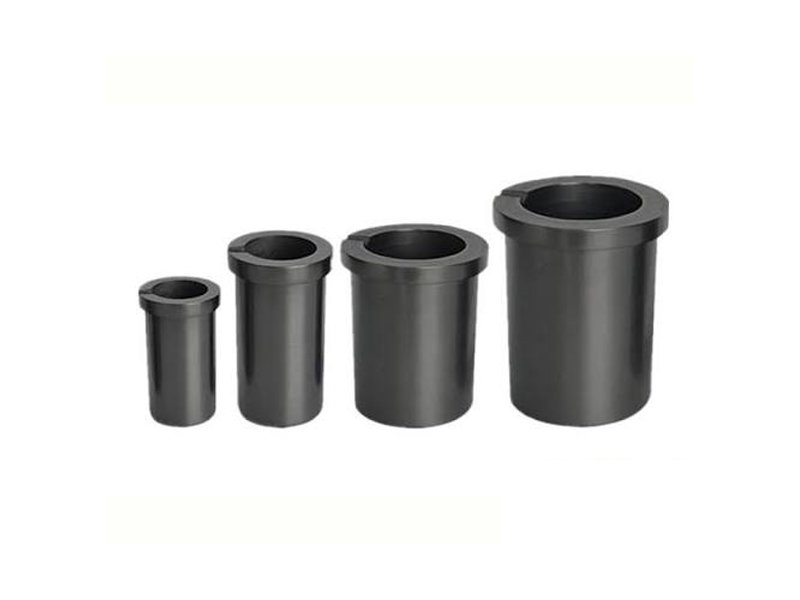

Custom silicon nitride ceramic tubes are developed for equipment that requires a tube geometry, mounting feature, or material specification beyond a standard product. Depending on the grade and design, potential uses include selected high-temperature process equipment, specialized sensor assemblies, and precision industrial machinery.
Customization may include outside diameter, inside diameter, length, wall thickness, closed or open ends, grooves, stepped sections, and selected machined features. Feasibility depends on the manufacturing route, ceramic grade, dimensional tolerances, and finishing requirements.
Potential industries: Semiconductor and electronics equipment; powder metallurgy and advanced ceramics; selected chemical and process equipment where material compatibility has been confirmed.

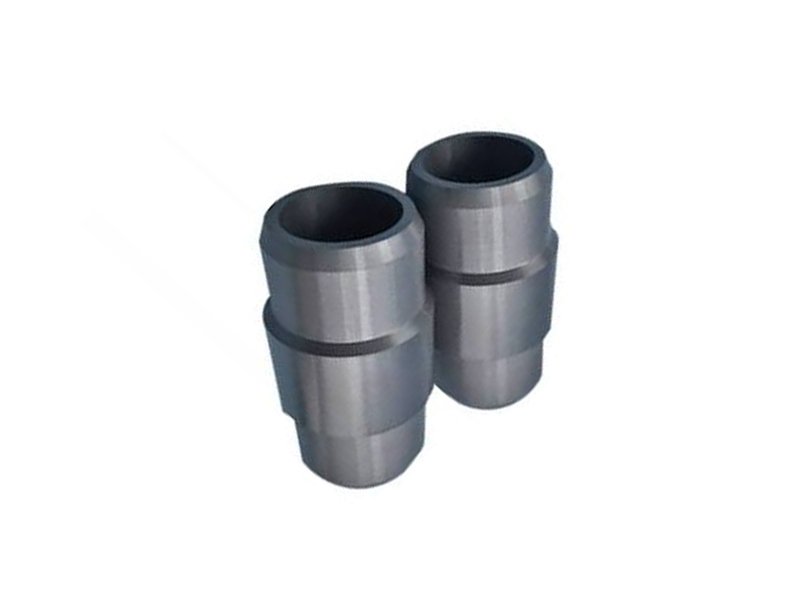

A precision ceramic tube for specialized equipment requiring controlled bore dimensions, wall thickness, straightness, or selected end features. Final tolerances should be agreed upon after drawing review.

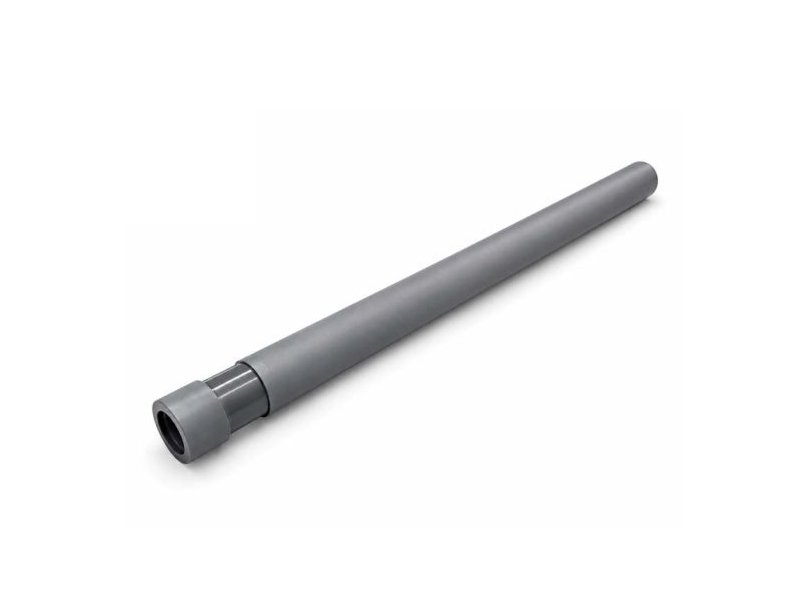

For selected high-temperature process equipment where ceramic strength and thermal stability are important. Specify the atmosphere, temperature profile, pressure, gas exposure, and thermal cycling for suitability assessment.

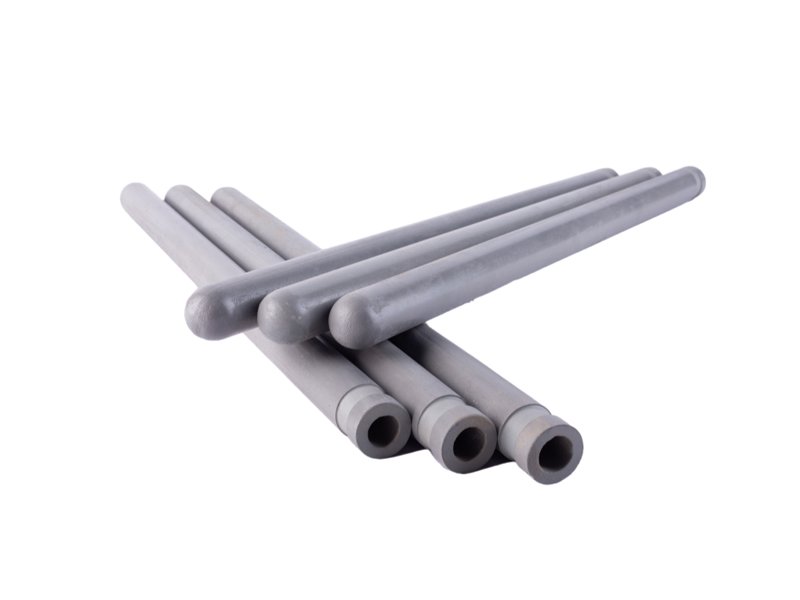

A custom manufacturing option based on customer drawings or samples. Submit the component dimensions, required quantity, working environment, tolerance requirements, and inspection criteria for evaluation.
The best tube design depends on its function and operating conditions. Use the following checklist when preparing an inquiry or requesting a technical review.
Identify whether the tube protects a sensor, transfers molten metal, houses a heating element, or serves a custom process function.
Provide operating and peak temperatures, atmosphere, contact medium, thermal cycling, pressure, and mechanical loads.
Specify outside diameter, inside diameter, length, wall thickness, end shape, mounting features, and dimensional tolerances.
Define material grade, density or porosity requirements where relevant, surface finish, inspection method, quantity, and acceptance criteria.
Important: Do not assume that all silicon nitride grades share the same maximum operating temperature, gas-tightness, molten metal compatibility, or dimensional capability. Confirm the grade-specific data for the intended service environment.
The manufacturing route for a silicon nitride tube depends on its geometry, material grade, performance requirements, and production volume. A typical workflow may include the following stages.
STEP 01
Prepare the selected silicon nitride powder formulation and processing additives.
STEP 02
Form the tube blank using a suitable process for the geometry and material system.
STEP 03
Apply the appropriate sintering route to develop the required ceramic microstructure and properties.
STEP 04
Grind or finish selected surfaces and dimensions where required by the drawing.
STEP 05
Check agreed dimensions, visible defects, and applicable product acceptance criteria.
The exact process, available tolerances, inspection scope, and certification documents must be confirmed for the specific product and manufacturing facility.
Industrial ceramic tube selection is application-specific. A clear technical brief helps establish whether the requested geometry and material requirements are suitable for the intended operating conditions.
Share a technical drawing or sample details for preliminary geometry and manufacturability review.
Explain the working environment so the material grade and tube configuration can be evaluated.
Include quantity, dimensional tolerances, inspection needs, packaging, and target delivery schedule.
Common application-oriented categories include silicon nitride thermocouple protection tubes, silicon nitride riser tubes, silicon nitride heater protection tubes, and custom silicon nitride ceramic tubes. The best category depends on the tube’s function and operating environment.
They are used in selected temperature measurement systems, including aluminum foundries, molten non-ferrous metal processes, and industrial furnaces. The sensor assembly and ceramic grade must be compatible with the process conditions.
A riser tube can provide a passage for transferring molten aluminum in compatible low-pressure die casting and foundry systems. Its dimensions, material grade, and construction must match the casting equipment and molten metal conditions.
Custom dimensions may be possible depending on the forming route, ceramic grade, tube geometry, machining requirements, and production capability. Provide a drawing with the outside diameter, inside diameter, length, wall thickness, tolerances, and end details for review.
Provide the intended application, material or grade requirements if known, tube dimensions, operating temperature, atmosphere or contact medium, thermal cycling, quantity, drawing, tolerance requirements, and inspection expectations.
No. Allowable operating temperature varies with the material grade, atmosphere, loading, geometry, thermal cycling, and contact medium. Confirm the manufacturer’s grade-specific technical data before selecting a tube for high-temperature service.
Send your drawing, required dimensions, operating conditions, quantity, and target specifications. The project can then be reviewed for material suitability and manufacturing feasibility.
