Advanced Silicon Nitride Ceramics
Explore silicon nitride ceramic rings for sealing systems, electrical insulation, precision bearings, wear protection, and mechanical positioning. AOFE supports application-oriented ceramic component development, precision machining, and custom manufacturing according to drawings and technical requirements.
Start with the ring’s primary function, then review the related product types and specify your operating conditions.
Silicon nitride (Si₃N₄) is an engineering ceramic used in components that require a combination of hardness, wear resistance, low density, thermal stability, and mechanical strength. Its suitability depends on the material grade, manufacturing process, component geometry, and actual operating conditions.
PRODUCT SERIES 01
Ceramic ring components for selected mechanical sealing and rotating equipment applications.

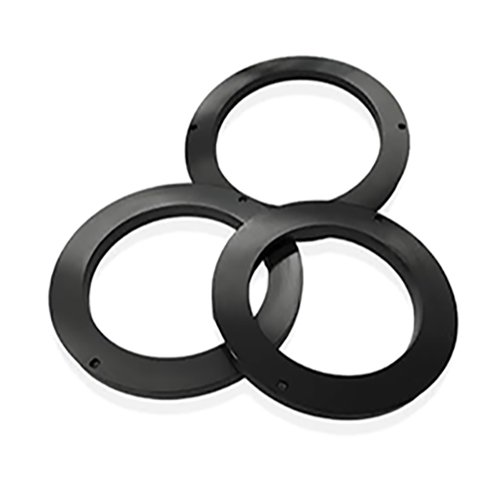

Designed for mechanical seal assemblies where wear resistance, dimensional consistency, and thermal performance are important. Final suitability depends on mating materials, contact pressure, lubrication, and media compatibility.
Application keywords: mechanical seal assemblies, industrial rotating equipment, precision seal faces.

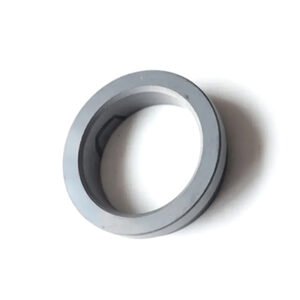

Ring components for compatible pump sealing systems. Buyers should provide pump model, operating pressure, fluid characteristics, temperature, and mating surface requirements to support material and design selection.
Application keywords: industrial pumps, fluid handling equipment, pump sealing components.

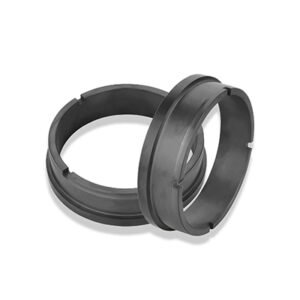

For selected rotary sealing designs that require a ceramic ring with controlled geometry and surface finish. Rotational speed, runout, friction conditions, and counterface material should be evaluated during specification.
Application keywords: rotary sealing, rotating machinery, precision ceramic rings.

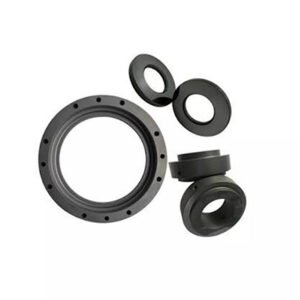

Custom annular ceramic components manufactured to approved drawings or samples. The inquiry can define inner diameter, outer diameter, thickness, grooves, chamfers, tolerances, surface finish, and material requirements.
Application keywords: custom ceramic seal rings, OEM seal components, drawing-based manufacturing.
PRODUCT SERIES 02
Ceramic rings for electrical isolation and selected high-temperature industrial assemblies.

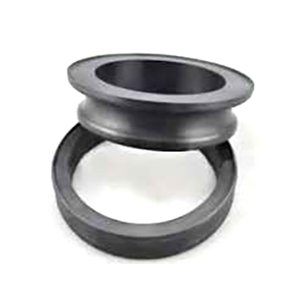

For assemblies requiring electrical separation alongside mechanical strength and ceramic stability. Electrical performance should be confirmed against voltage, frequency, environment, geometry, and the selected ceramic grade.
Application keywords: electrical insulation components, industrial ceramic insulators, insulating rings.

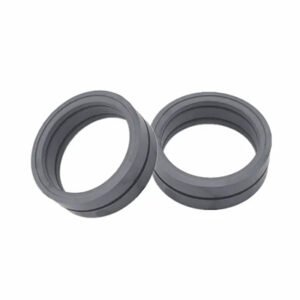

Developed for compatible elevated-temperature assemblies where thermal stability and mechanical support are needed. Maximum service temperature depends on atmosphere, load, thermal cycling, and material grade.
Application keywords: high-temperature ceramic rings, thermal process equipment, heat-resistant insulation components.

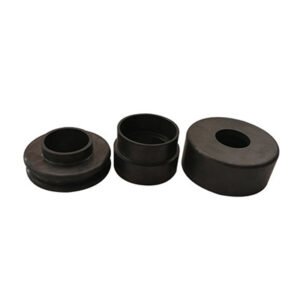

Combine spacing and insulating functions in a ring-shaped ceramic component. Specify the required separation distance, loading conditions, fit, surface contact, and dimensional tolerances for the assembly.
Application keywords: insulating spacer rings, ceramic electrical spacers, precision assembly components.

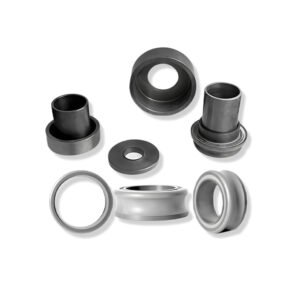

Custom insulating rings tailored to equipment drawings, mounting requirements, and electrical or thermal operating conditions. Share the target dimensions, working environment, and required inspection criteria for review.
Application keywords: custom ceramic insulation rings, OEM insulating components, precision Si₃N₄ rings.
PRODUCT SERIES 03
Precision ceramic bearing race components for specialized bearing designs and rotating systems.

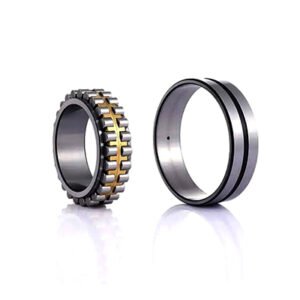

Inner race components for bearing designs specifically engineered to use silicon nitride ceramic rings. Raceway geometry, fit, concentricity, and contact conditions must match the selected rolling elements and bearing design.
Application keywords: ceramic inner race, precision bearing components, custom bearing ring.

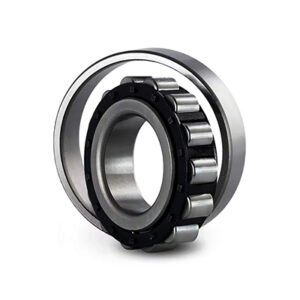

Outer race components for compatible ceramic bearing assemblies. Housing fit, raceway dimensions, alignment, load, and operating speed should be established before manufacturing.
Application keywords: ceramic outer race, bearing housing assemblies, precision Si₃N₄ components.

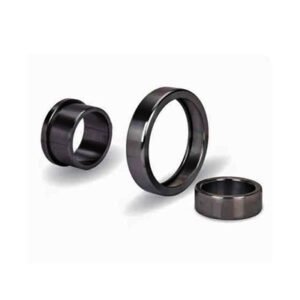

Raceway rings for specialized ceramic bearing assemblies. This product is intended for applications where the bearing design specifically calls for ceramic race components, rather than conventional steel races with ceramic rolling elements.
Application keywords: silicon nitride bearing race, ceramic raceway rings, advanced ceramic bearings.

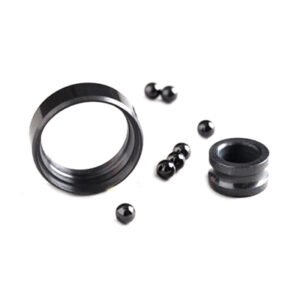

Drawing-based ceramic bearing rings for specialized equipment and non-standard bearing configurations. Include raceway profiles, dimensional tolerances, surface finish, load details, and assembly drawings with your request.
Application keywords: custom ceramic bearing rings, OEM bearing races, precision ceramic machining.
PRODUCT SERIES 04
Wear-resistant annular components for compatible friction, contact, and abrasive service conditions.

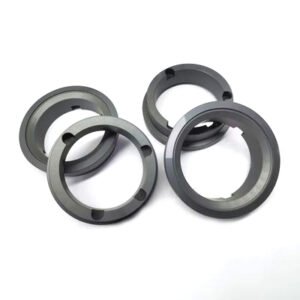

Ceramic rings for equipment components exposed to friction or repeated contact. Wear performance depends on counterface material, contact load, lubrication, abrasive particles, and operating temperature.
Application keywords: ceramic wear rings, industrial wear components, abrasion-resistant ceramic parts.

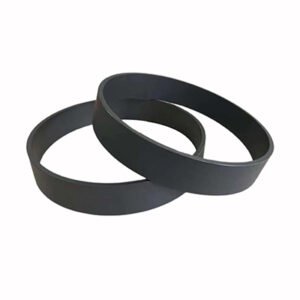

For applications where extended wear life is a design objective. Buyers should provide expected contact pressure, movement type, cycle frequency, environment, and acceptable wear limits for application review.
Application keywords: high wear resistance ceramic rings, long-life wear components, industrial Si₃N₄ rings.

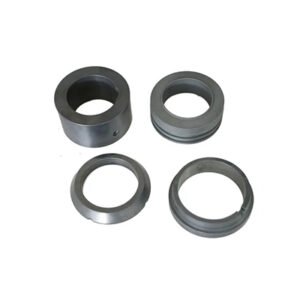

For compatible equipment exposed to particle contact or abrasive media. Actual service life must be assessed using the particle characteristics, flow conditions, impact exposure, and component design.
Application keywords: abrasion-resistant ceramic rings, abrasive service components, industrial ceramic liners.

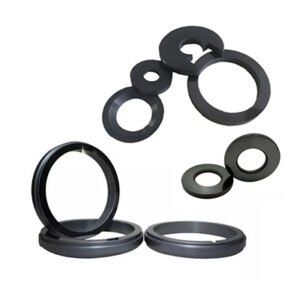

Custom wear rings produced to specified geometry and working conditions. Technical drawings should identify contact faces, grooves, edge details, tolerances, surface finish, and expected loading.
Application keywords: custom wear rings, OEM ceramic wear parts, precision machined Si₃N₄ rings.
PRODUCT SERIES 05
Ring-shaped ceramic components for spacing, location, and structural support in engineered assemblies.

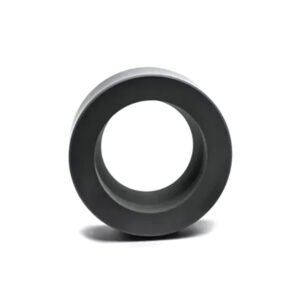

Precision spacers that maintain separation or set assembly positions in compatible equipment. Specify spacer thickness, parallelism, flatness, bore size, contact load, and assembly clearances.
Application keywords: ceramic spacer rings, precision spacers, industrial assembly rings.

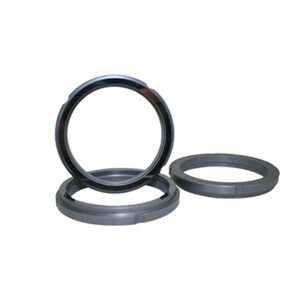

Support components for assemblies that require a rigid ceramic interface or load-bearing ring geometry. Design review should consider compressive loading, edge stress, thermal expansion, and mounting conditions.
Application keywords: ceramic support rings, structural ceramic components, precision support parts.

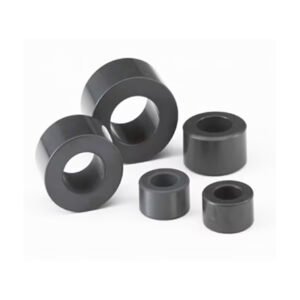

Ring components used to locate or align parts within a mechanical assembly. Provide the reference surfaces, positioning accuracy, dimensional tolerances, and any thermal or mechanical constraints.
Application keywords: ceramic positioning rings, alignment components, precision locating rings.

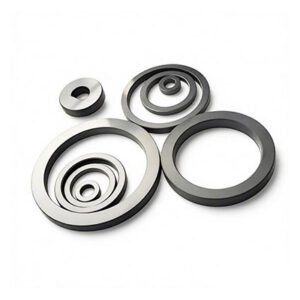

Custom spacer and support rings designed around the customer’s assembly interface. Submit drawings or samples with dimensions, tolerance requirements, loading details, and the intended operating environment.
Application keywords: custom ceramic spacer rings, custom support rings, OEM Si₃N₄ components.
To help evaluate manufacturability and prepare a suitable quotation, include as many of the following details as possible.
| Specification | Information to Provide |
|---|---|
| Dimensions | Inner diameter, outer diameter, thickness, grooves, and chamfers. |
| Tolerance & Finish | Dimensional tolerances, flatness, parallelism, concentricity, and surface roughness. |
| Material | Required silicon nitride grade, material properties, and any applicable standards. |
| Operating Conditions | Temperature, atmosphere, pressure, load, speed, friction, and process media. |
| Order Requirements | Estimated quantity, prototype needs, annual demand, inspection, and packaging requirements. |
The manufacturing route depends on ring geometry, material grade, production volume, and performance requirements. A typical engineered ceramic workflow may include:
Manufacturing processes, inspection methods, achievable tolerances, and available material grades should be confirmed with the supplier for each project.
Depending on their design, silicon nitride rings can be used in selected sealing systems, electrical insulation assemblies, specialized bearing designs, wear-resistant equipment, and precision spacer or support applications.
Custom manufacturing may be possible depending on the geometry, material grade, dimensions, tolerances, and production capabilities. Provide a technical drawing or sample for manufacturability review.
Useful information includes the ring type, inner and outer diameters, thickness, material requirements, dimensional tolerances, surface finish, operating conditions, order quantity, and expected delivery requirements.
Silicon nitride is used in some elevated-temperature engineering applications. Suitability for a particular ring depends on material grade, atmosphere, mechanical load, thermal cycling, and the required service life. Confirm these conditions before selecting a product.
Start with the ring’s function, mating components, dimensions, loading, temperature, operating environment, and tolerance requirements. A drawing and application description help the supplier assess material and manufacturing options.
ENGINEERED TO YOUR REQUIREMENTS
Send your product requirements, technical drawing, or reference sample details. Include the ring type, dimensions, material requirements, application, quantity, and target delivery schedule to help the team review your inquiry.
