Who We Are
We are a specialized high-tech manufacturer operating at the intersection of Advanced Technical Ceramics and Metal Injection Molding (MIM). Our dual-capability facility is dedicated to solving the most demanding engineering challenges where traditional materials fail.
From ultra-precision Silicon Nitride (Si3N4) bearing balls that enable next-generation electric vehicles, to complex Stainless Steel and Tool Steel MIM components for medical and aerospace devices, we provide end-to-end manufacturing. Our expertise spans material formulation, green machining, precision sintering, and final CNC finishing.
- Dual Expertise: Mastery in both Ceramic and MIM technologies
- Material Science: In-house R&D for custom alloy and ceramic formulations
- End-to-End: From powder preparation to precision CNC machining
- Global Standards: ISO certified with strict traceability
Our Story
2016 – The Beginning
AOFFE MIMCustom, with the vision of advanced metal injection molding technology, is dedicated to enabling industry manufacturers to obtain complex metal components.
2018 – Rapid Expansion
Scaled production capacity to10+ injection machines, obtained ISO 9001 certification, and expanded our client base to 15 countries.
2020 – Automotive & Medical Focus
Achieved IATF 16949 certification for automotive quality management. Entered the medical device sector with FDA-compliant MIM components.
2022 – Smart Manufacturing
Invested in Industry 4.0 automation, digital quality management systems, and expanded to a new 5,000 sqm manufacturing campus.
2025 – Global Leadership
Serving 100+ clients in 20+ countries, pioneering new MIM alloy formulations and special ceramic manufacturing process, and leading R&D in AI-assisted process optimization for next-generation precision manufacturing.
Our Core Manufacturing Pillars
Industries We Serve
Our custom MIM components power critical applications across diverse industries, delivering precision, reliability, and cost-effectiveness at scale.
Why Choose AOFE MIMCustom?
When you partner with MIM Custom, you gain a manufacturing ally that combines deep technical expertise with agile, customer-centric service.
Material Formulation
Custom blending of ceramic powders and MIM feedstocks to optimize sintering density and mechanical properties.
Precision CNC Finishing
Advanced grinding, lapping, and polishing capabilities to achieve mirror finishes and micron-level tolerances on Si3N4 balls and MIM parts.

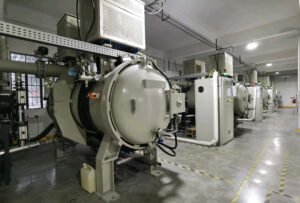

Advanced Sintering
Gas pressure sintering (GPS) for ceramics and controlled-atmosphere vacuum furnaces for MIM, ensuring zero oxidation and maximum density.

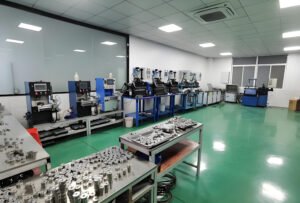

Metrology & QC
CMM, optical profilometry, and material testing labs ensuring every batch meets aerospace and medical grade specifications.

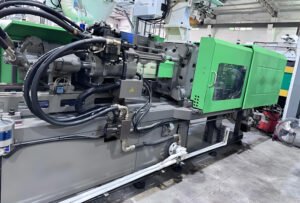

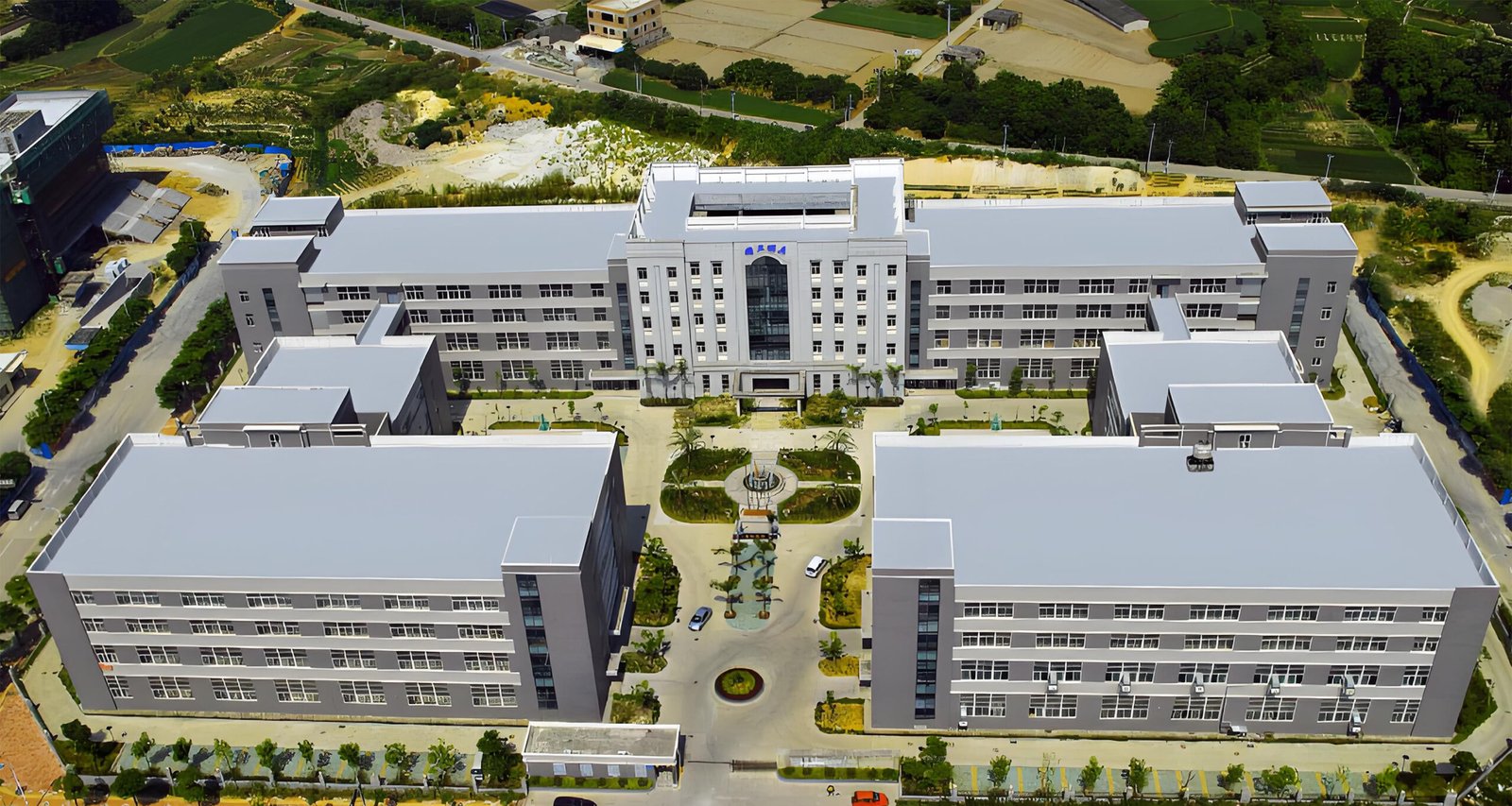

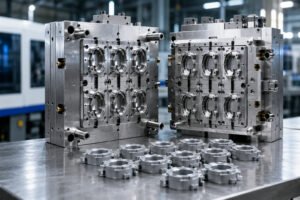

Our Manufacturing Facility
Frequently Asked Questions

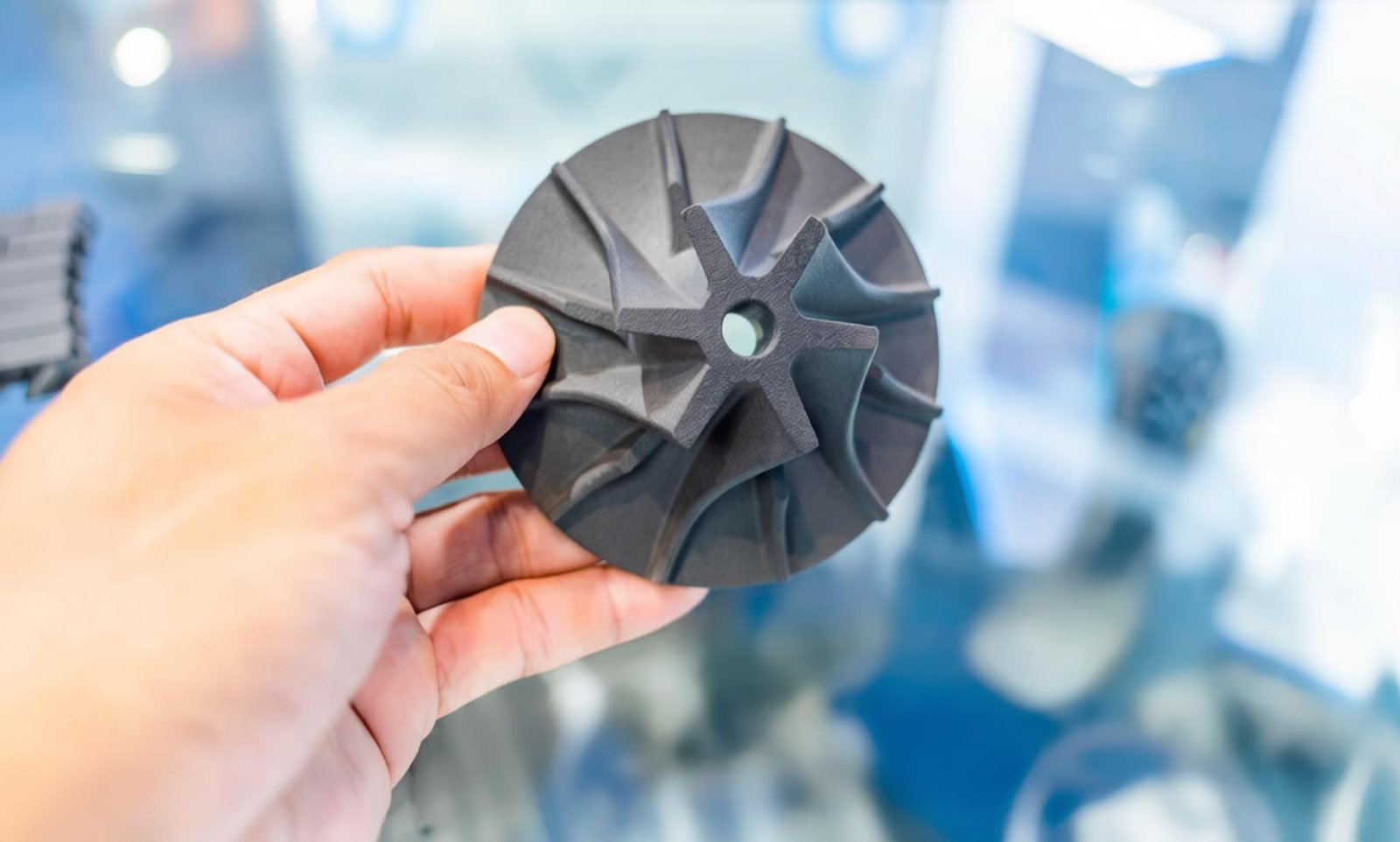

What is Metal Injection Molding (MIM) and how does it work?
Metal Injection Molding (MIM) is an advanced manufacturing process that combines the design flexibility of plastic injection molding with the strength and integrity of powdered metallurgy. Fine metal powder is mixed with a thermoplastic binder to create a feedstock, which is then injected into a precision mold cavity. The resulting “green part” undergoes debinding (binder removal) and high-temperature sintering (up to 1,400°C) to produce a dense, near-net-shape metal component with mechanical properties comparable to wrought materials.
What materials can MIMCustom work with?
We work with a comprehensive range of MIM-compatible materials including: 316L/17-4PH stainless steels, low-alloy steels, tool steels, titanium and titanium alloys (Ti-6Al-4V), tungsten and tungsten heavy alloys, copper, nickel-based superalloys (Inconel), cobalt-chrome alloys, soft magnetic materials (Fe-Si, Fe-Ni), and custom alloy formulations for specialized applications.
What are the advantages of Silicon Nitride (Si3N4) bearing balls over steel?
Silicon Nitride (Si3N4) bearing balls offer significant advantages: they are 40% lighter than steel, significantly harder, electrically insulating, and non-magnetic. They excel in high-speed applications by reducing centrifugal loads and friction, and can operate in extreme temperatures and corrosive environments where steel bearings would fail.
What is the difference between Alumina and Zirconia ceramics?
Alumina (Al2O3) is highly cost-effective, offering excellent hardness, electrical insulation, and high-temperature stability. Zirconia (ZrO2) features much higher fracture toughness and bending strength, making it ideal for applications requiring impact resistance and high mechanical stress, though it has a lower maximum operating temperature than Alumina.
What size parts can you produce with MIM?
MIM is ideal for small to medium-sized precision parts, typically ranging from 0.1 grams to 200 grams. The optimal weight range is under 50 grams. Parts can have dimensions up to approximately 100mm in any direction. MIM excels at producing complex geometries – including thin walls, internal channels, undercuts, and fine features – that would be impossible or prohibitively expensive with conventional machining.
What is the typical lead time and minimum order quantity?
Prototypes: 7-10 business days from approved drawings. Production tooling: 3-4 weeks. Mass production: 4-6 weeks depending on complexity and volume. Our standard MOQ is 5,000 pieces per design, though we offer flexible arrangements for initial trial orders and ongoing production programs. We provide detailed DFM (Design for Manufacturability) analysis within 24 hours of receiving your 3D drawings.
How does MIM compare to CNC machining and investment casting?
Compared to CNC machining, MIM achieves 30-50% cost reduction for complex parts at volumes above 10,000 pieces, uses 95%+ of raw material (vs. 30-60% for CNC), and can produce geometries impossible to machine. Compared to investment casting, MIM offers superior dimensional accuracy (±0.3% vs. ±0.5%), finer surface finishes, thinner walls, and tighter tolerances without secondary machining. MIM is the optimal choice when you need complex shapes, high precision, and medium-to-high production volumes.

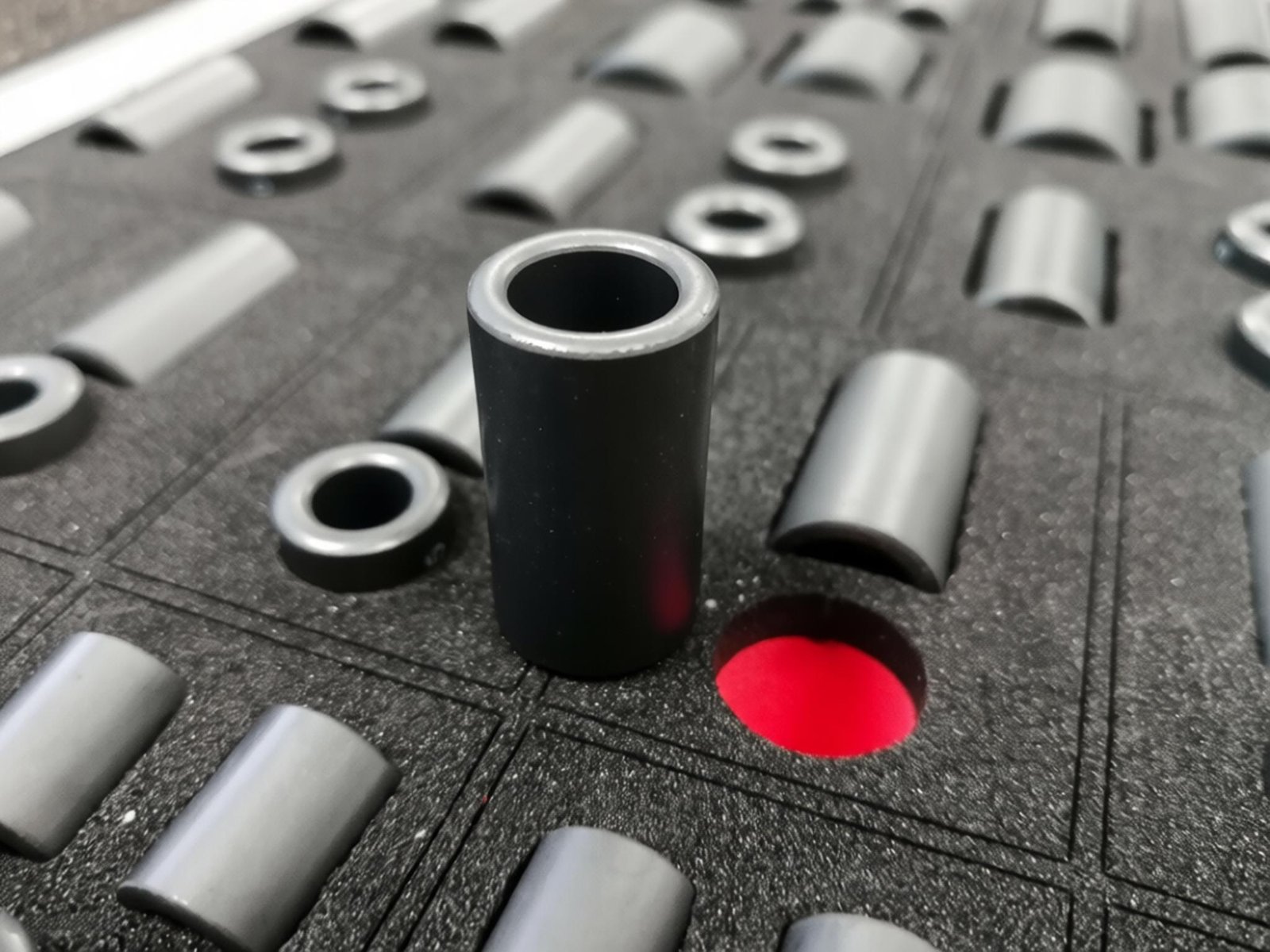

Can you manufacture non-standard customized ceramic structural parts?
Yes, custom structural parts are our specialty. We provide full DFM (Design for Manufacturability) support. Because ceramics shrink significantly (up to 20%) during sintering, our engineers use advanced simulation software to design the initial green-state tooling, ensuring the final fired part meets your exact non-standard dimensional tolerances.
Ready to Start Your Next MIM Project?
Send us your drawings or specifications today and receive a free DFM analysis and competitive quote within 24 hours. Let’s engineer your precision metal parts together.
